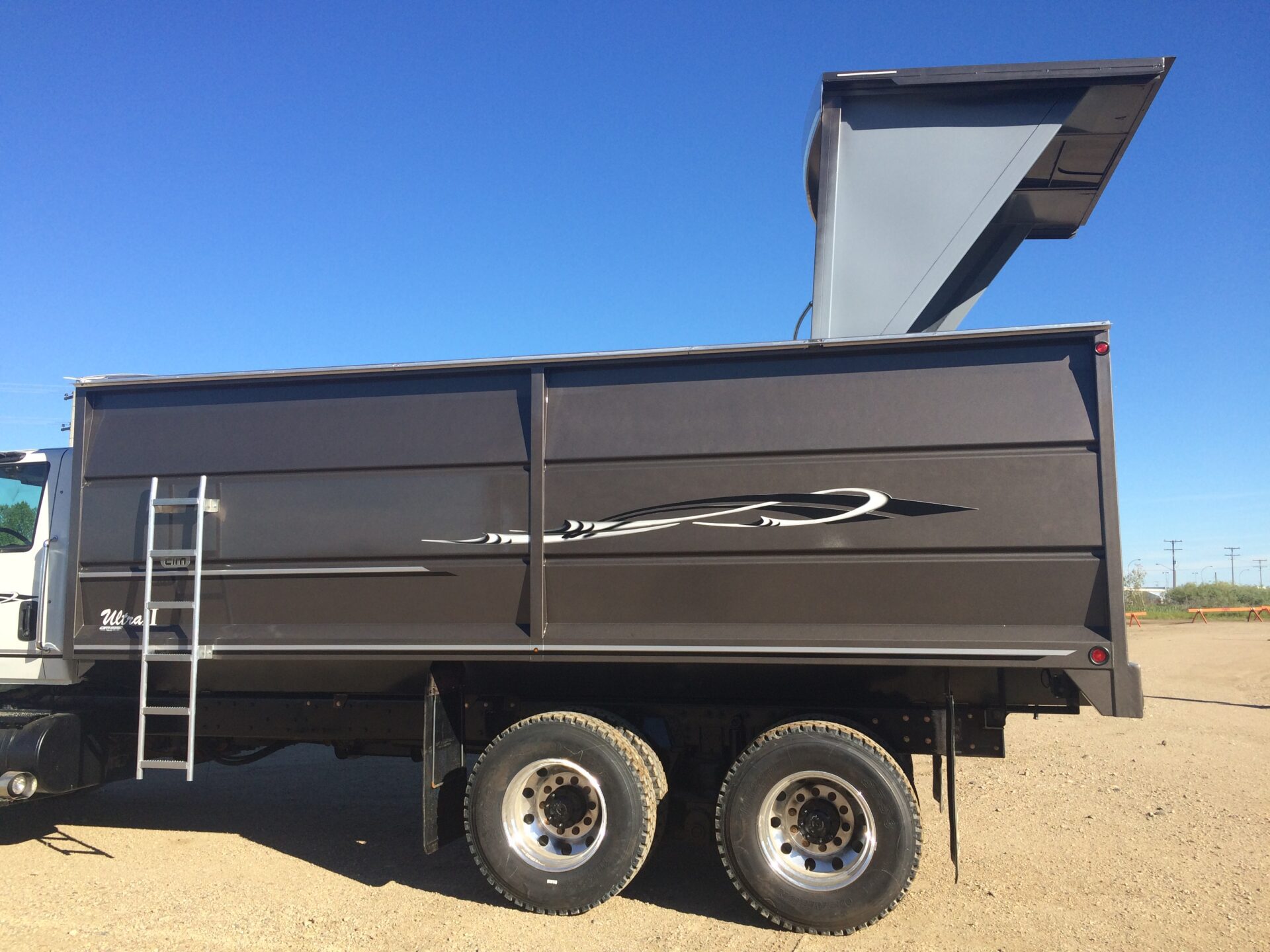

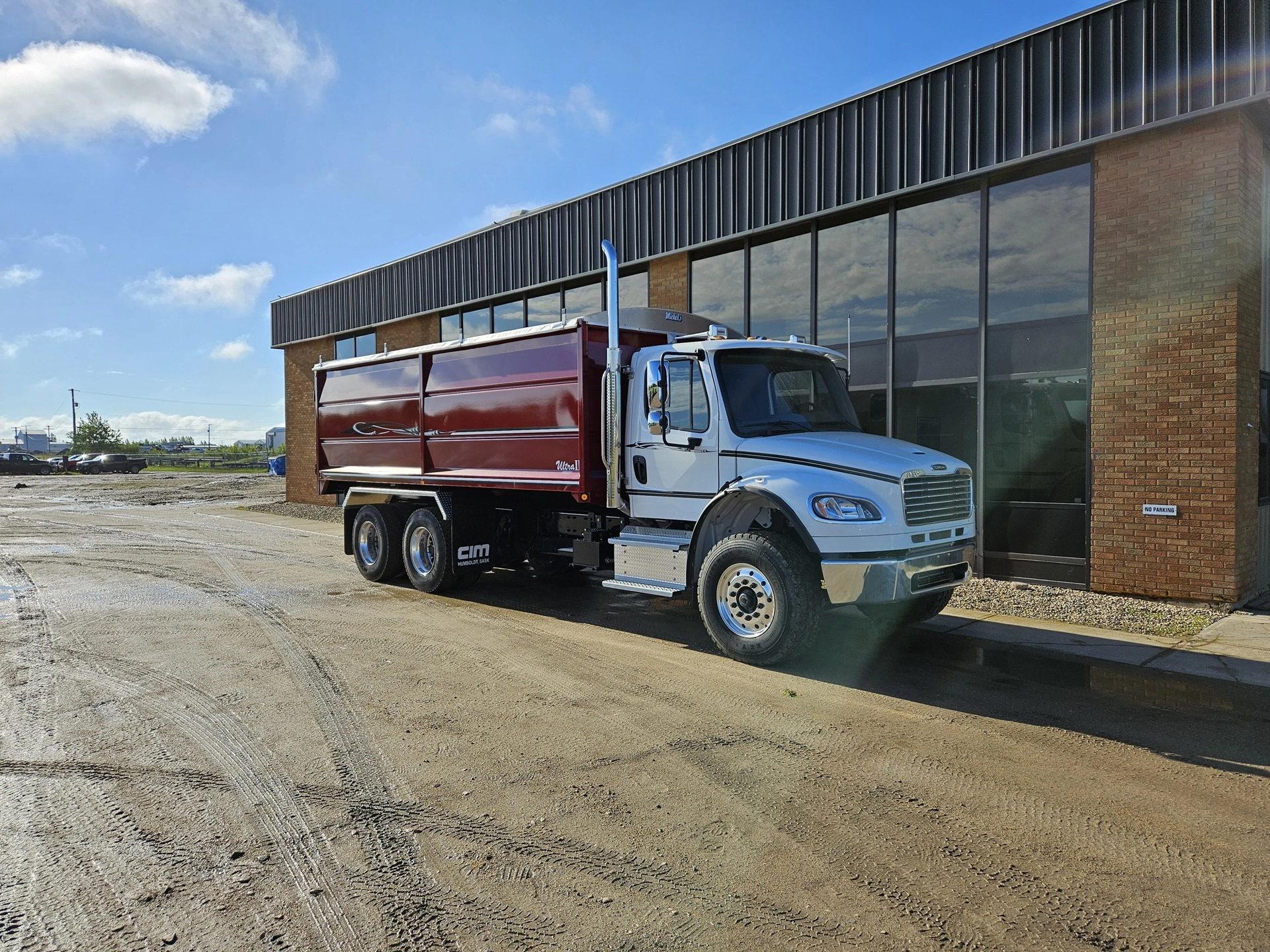

Standard Specifications for CIM Ultra II Grain Body

Smooth, Clean Floor Design No Cross Members
42" 48" 55" 60" 65" Wall Heights
3/16" or 1/4" Floor with Continuously Welded Floor Seams
10" x 3/16" Hatsills for Superior Floor Support
Heavy Duty Front Apron for Added Strength and Rigidity
12 Gauge Side Panels for Superior Strength and Finish
3" x 3" Tubular Top Rails, Corner Posts and Centre Post Provide Maximum Strength for Heavy Payloads
Easy Clean Out Eliminates Grain Traps
Uniquely Formed Lower Sidewall Rails for Added Strength
3/16" Structural Rear Light Bar Providing Extra Support for Better Fitting Endgates
Led Lighting with Enclosed Wiring with Heat Shrink Connections
Aluminum Exterior Body Ladder with Inside Box Rungs
3 or 4 Piece Swing Out Endgates with Removable Header Bar for Full Width Access No Tools Required
Endgate Framework Designed to Keep Grain in and Moisture Out
Fast Discharge Grain Chute to Feed Large Augers with Dual Runner slide to Accommodate Optional Grain Deflector or Flex-A-Hopper Spout





Available Options

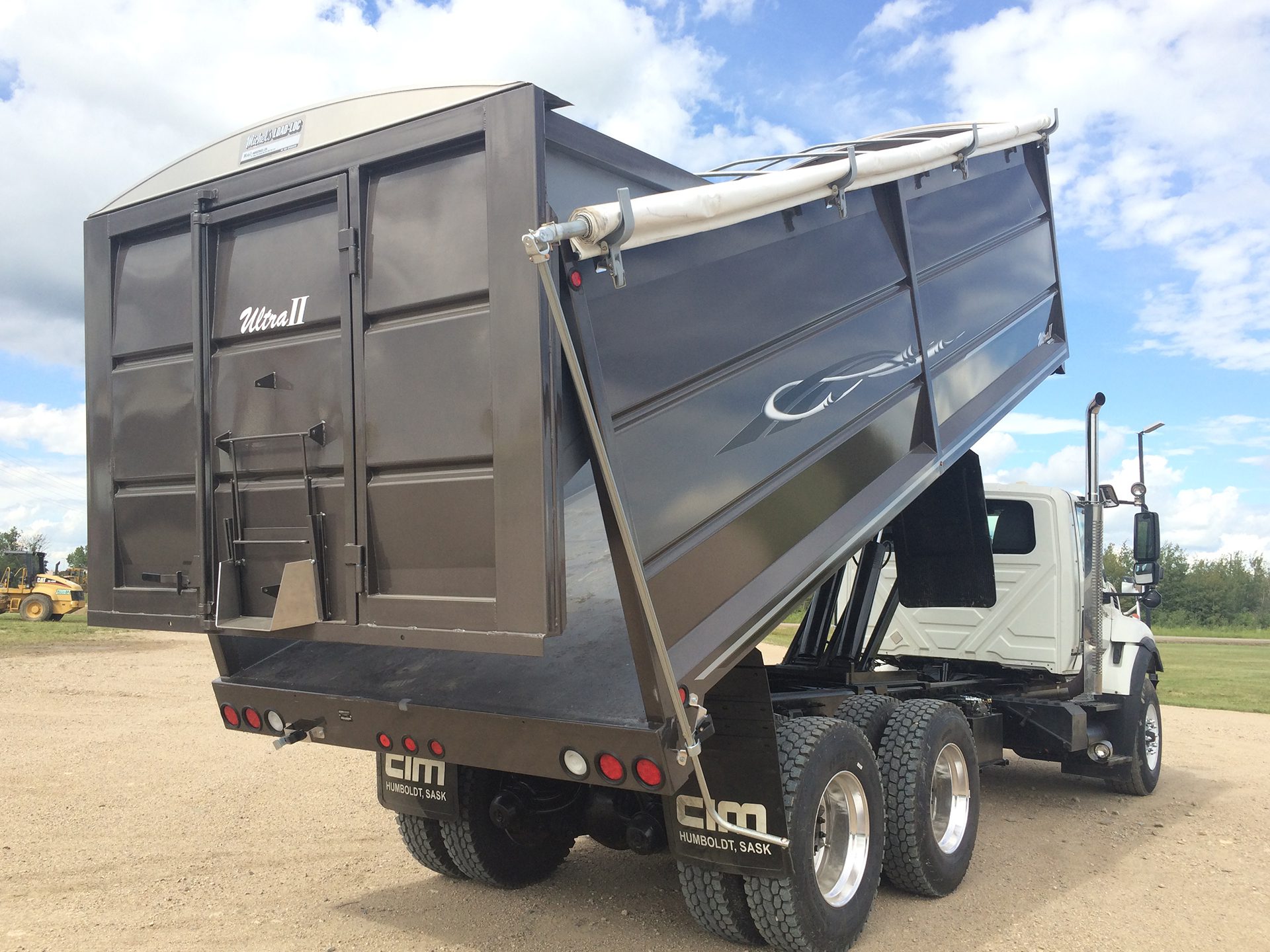

Hydraulic or Mechanical Lift Silage Gate
Silage Taper Packages
Roll Tarps
Box Window
Remote End Gate and Hoist System
Air Operated Hoist Controls
Flex-A-Hopper Chute Extensions
