Commercial Products

Serving businesses and industry with quality gravel bodies, bin transports, trailers, refuse containers & light standards.

Better Products, Better Business

We’re committed to providing your enterprise with the hauling, storing, and transportation solutions it needs in order to thrive. We believe that strong, reliable products help make the strong, reliable businesses that form the bedrock of our communities.

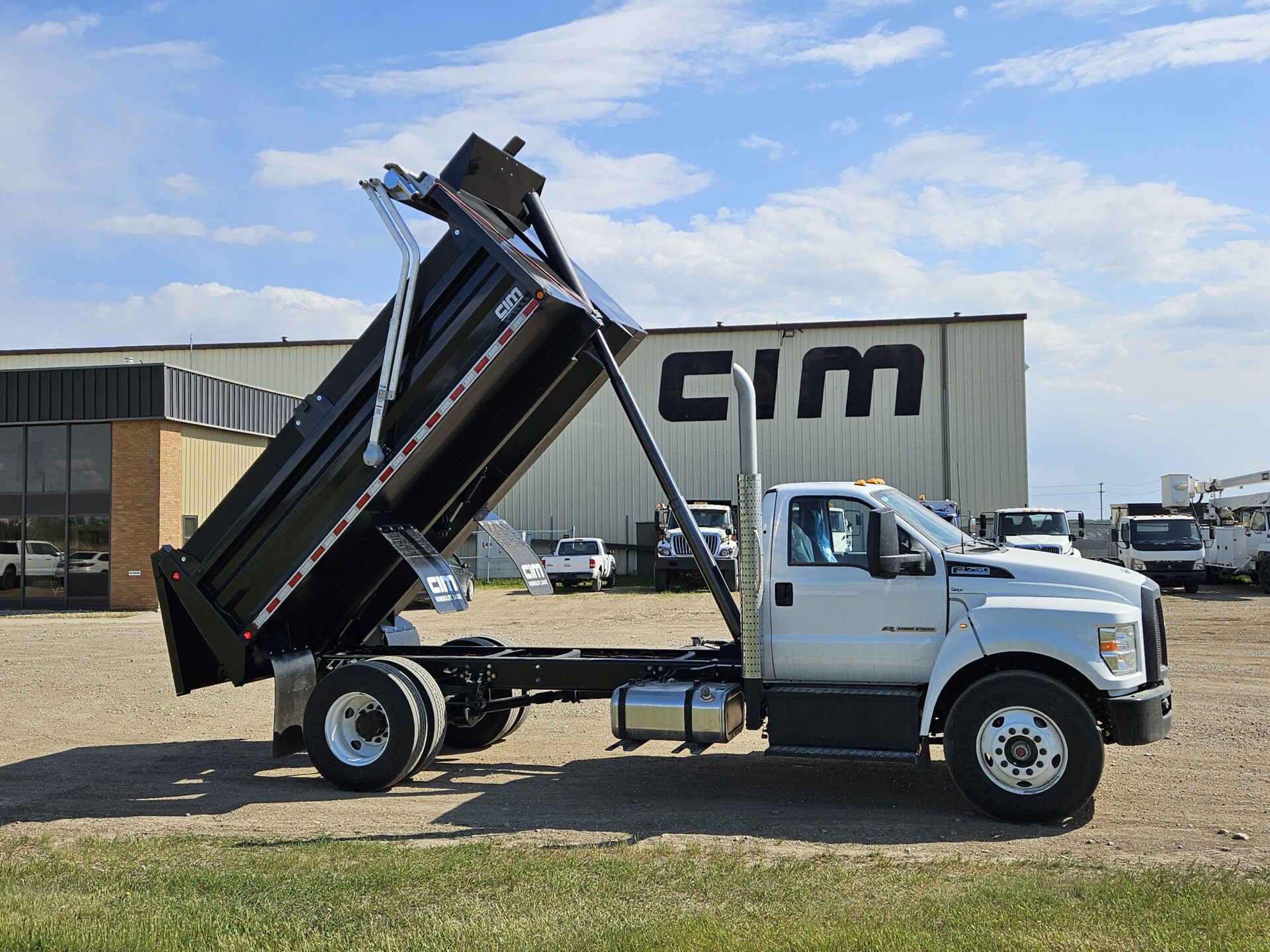

Gravel Body

Standard Specifications for the CIM GB Series:

  • 3/16″ steel abrasion resistant floor
  • 10 gauge sidewalls 36″ high
  • 3/8″ double-walled endgate 48″ high
  • 10 gauge front 60″ high with a doghouse or forward post
  • 3/16″ x 8″ hatsills
  • 10″ sideboard extension brackets
  • Air trip endgate sloped or straight
  • Greaseable gate and hinges
  • Spreader chains and brackets
  • Heavy duty 4 x 4 sidewall top rail
  • Epoxy topcoat paint and primer
  • LED body-mounted stop, turn, tail, and clearance lights
  • Fully enclosed wiring with heat shrink connection
  • 30″ sidewalls and 42″ endgate
  • A.R. and Q.T. flooring options
  • 1/2 cab protector 18″ or 30″
  • Mud flaps and anti-sail brackets
  • Safety props
  • Gravel box vibrator
  • Asphalt and gravel tarps
  • Sealed tailgate
  • Asphalt box package
  • Rock box and double-walled packages
  • Auto hoist height control

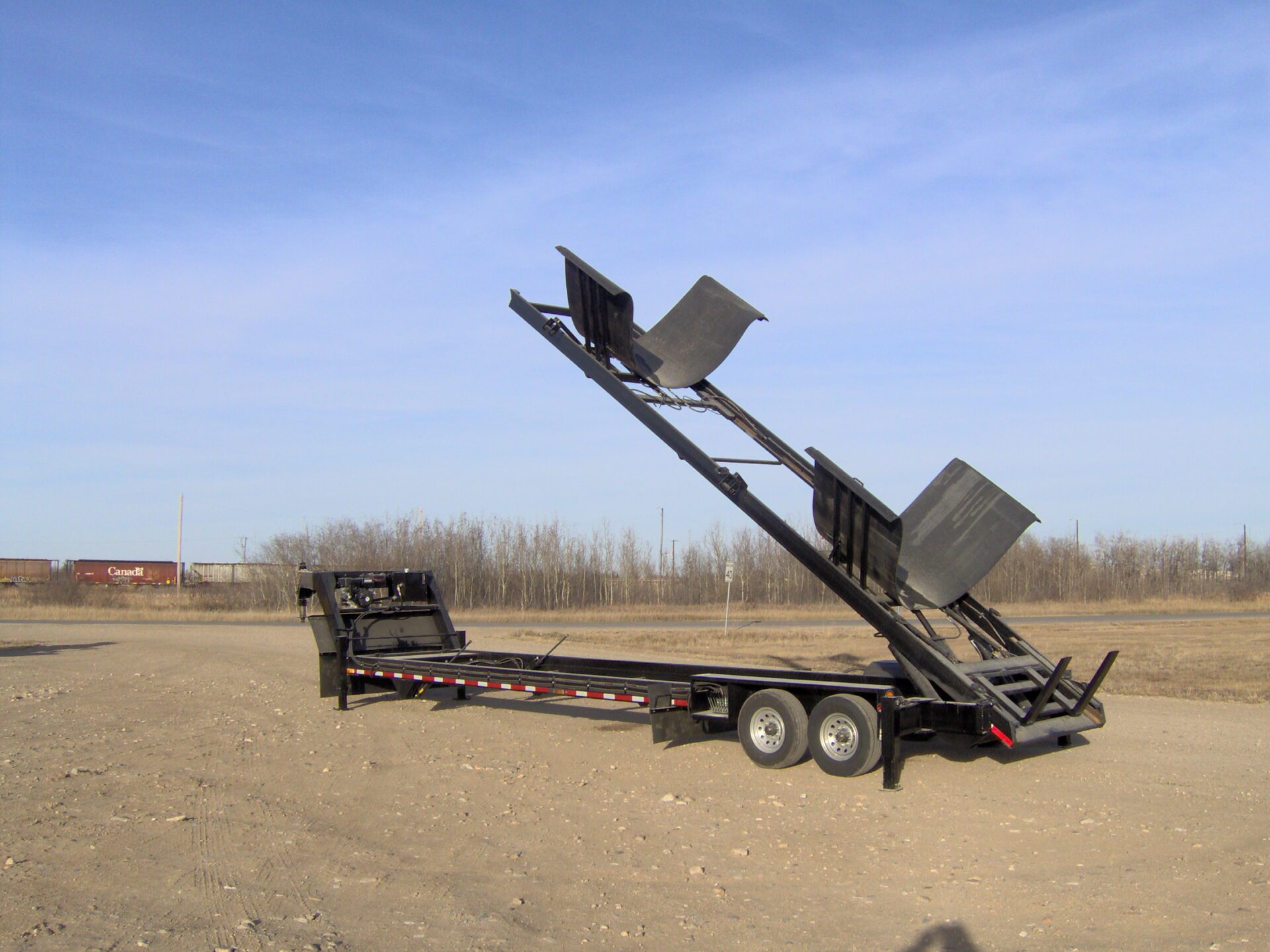

Auto Bin Transport

Our bin transport trailers are available in gooseneck or pony style configuration and are designed with a low bed height structural frame to accommodate a wide range of bin configurations.

  • 17500 GVW with a 32-foot bed to accommodate up to 21-foot diameter bins
  • Torfex axles with electric brakes and oil bath hubs
  • Rear cradle with 48” belting inlay, a foldable cradle for transport
  • Hyd. forward cradle with 48” belting inlay, a foldable cradle for transport
  • Rear hydraulic stabilizer legs
  • Full belting rock skirt at the front and ahead of suspension
  • 5-way directional control valve at driver’s side rear for ease of operation
  • 15 hp Honda power pack, 2 stages with electric start
  • Two, 4” round LED strobes at the rear of unit
  • Primed and painted black, comes with conspicuity tape
  • LED lighting package
  • Hydraulic wet kit installation
  • Proportional remote, electric over hydraulic

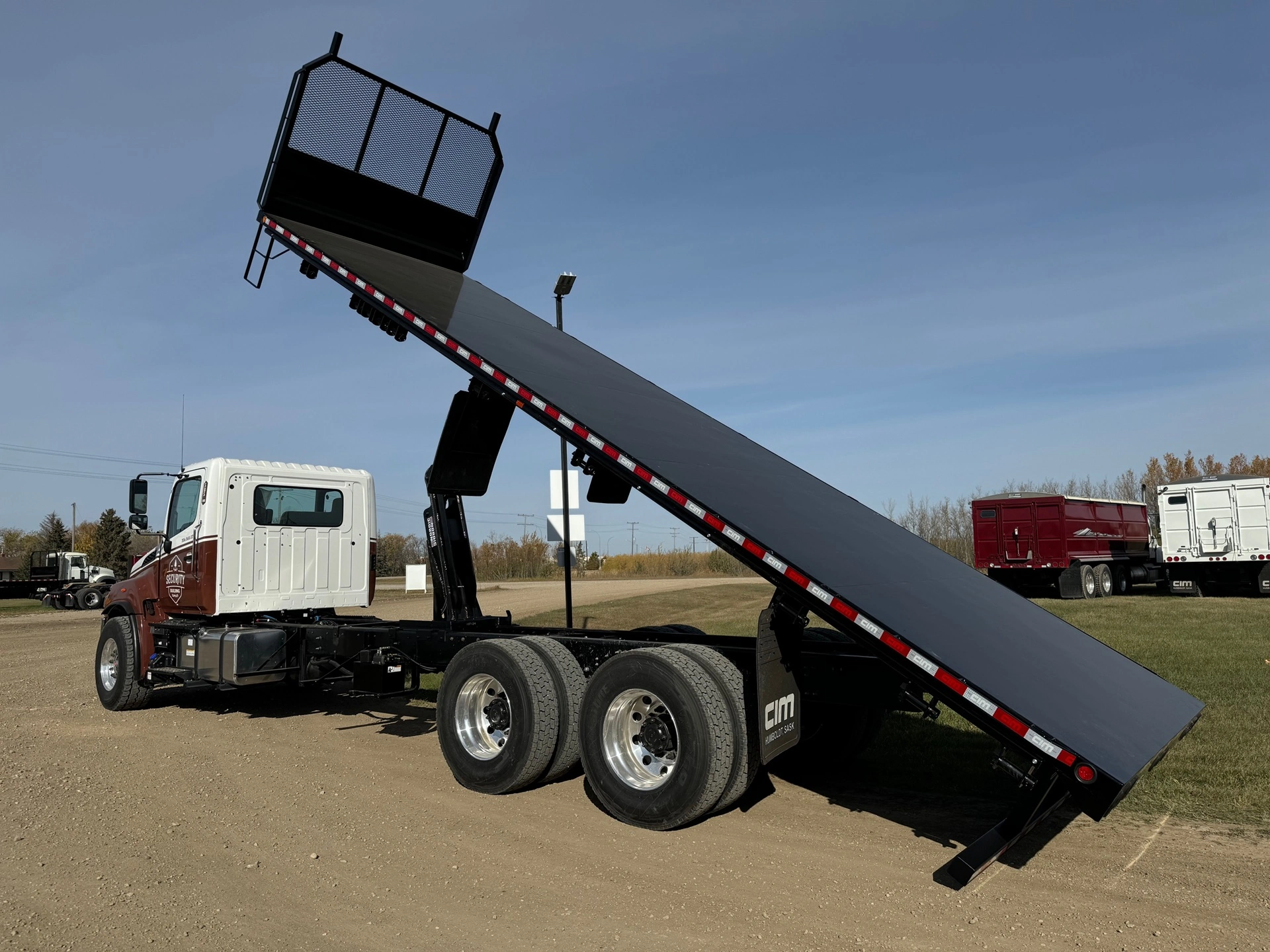

Flat Deck Trailer

Standard specifications for H.D. Commercial Decks:

  • Cross members 12″ o/c
  • Channel iron side rails
  • Heavy-duty bump rail
  • Pressure-treated wood or steel floor
  • 1/8″ & 3/16″ smooth or checker plate
  • Stake pockets and rub rail
  • 1/2 steel and 1/2 mesh cab protectors
  • Recessed rubber-mounted lighting
  • Fully enclosed wiring with heat shrink connections
  • Conspicuity tape

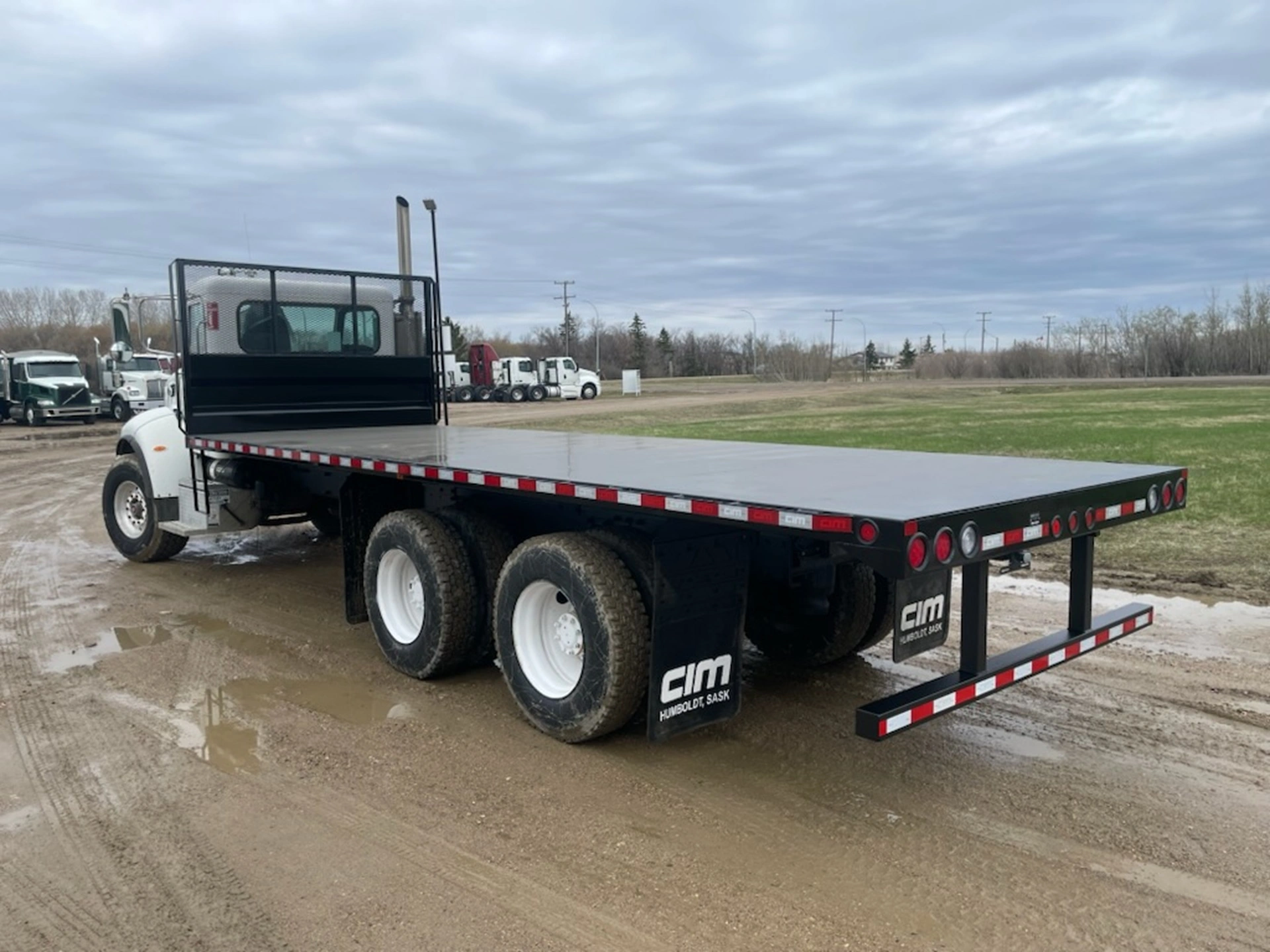

Standard specifications for Ag Decks:

  • 10 gauge steel wrap floor, smooth or checker plate
  • Cross members 12″ o/c
  • Clearance light package
  • Industrial paint and primer


  • Bumper, pintle or gooseneck
  • Electric, hydraulic or air brakes
  • Torflex, spring air-ride suspension
  • Flat decks, dovetails
  • Custom built to order
  • Winch track
  • Beacons
  • Tool boxes
  • Hoist & hydraulic pump combinations
  • Wide load slideouts

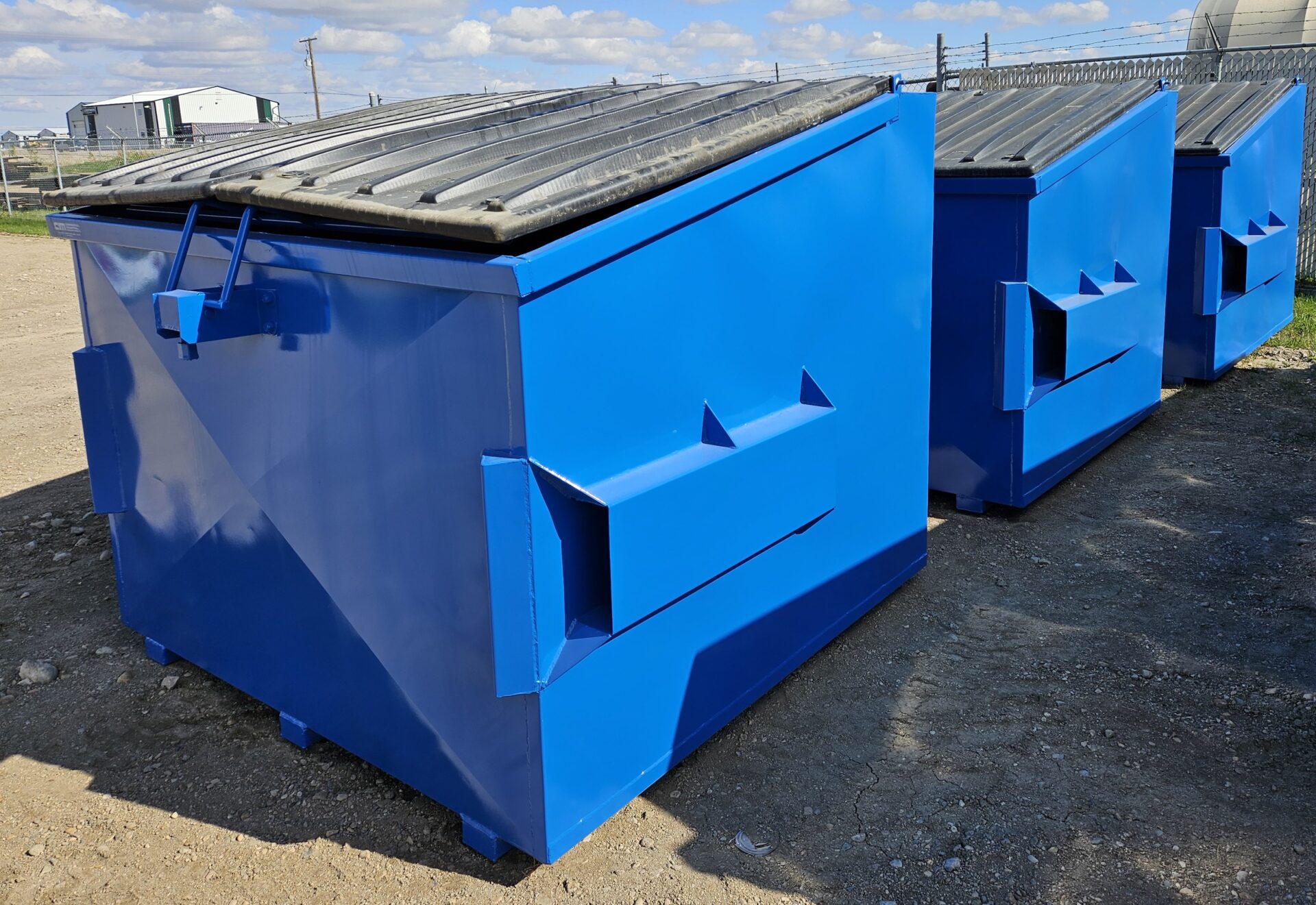

Refuse Containers

We manufacture various sizes of front, rear, and side load refuse bins and are a pre-approved front load supplier to the City of Saskatoon.

  • Double-wall polyethylene lids
  • Prop sticks
  • Under body skids
  • Front bumpers
  • Fork deflectors
  • Floor drain

Refuse Bin Options

  • Metal lids
  • Lid stops
  • Rear doors
  • Drop slot (cardboard)
  • Manual & auto lid locks
  • Extra heavy construction
  • Specialty paints available

Roll-off Options:

  • Hinged roof
  • Recycle compartments
  • Tie-down bars
  • Wear strips
  • Extra floor joists
  • Rollers
  • Heavy floor sheet

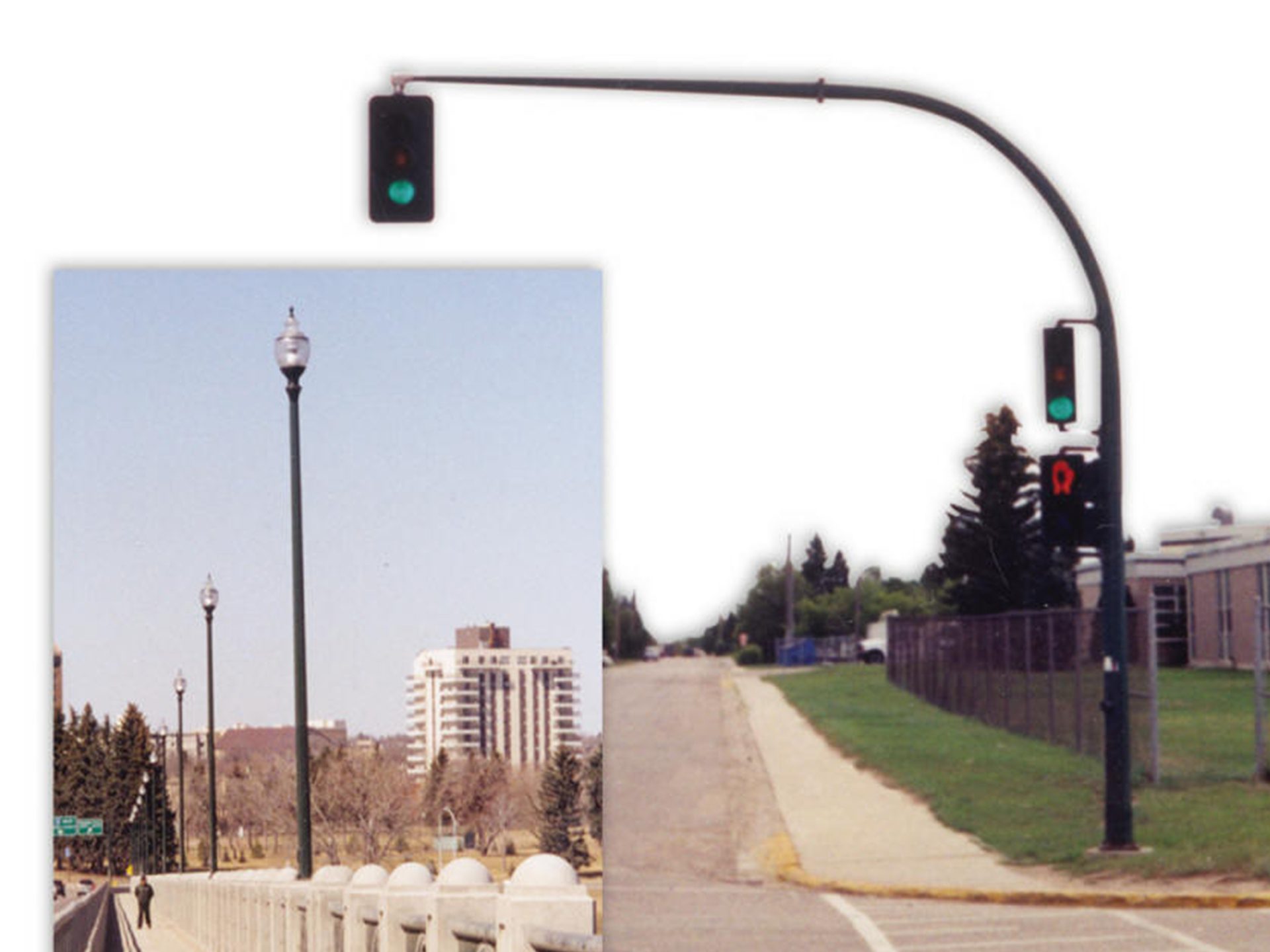

Light Standards

A long-time SaskPower streetlight pole provider, we also manufacture the CIM Break Away Base. This configuration reduces personal injury and damage to property as it allows the pole to move with a vehicle upon impact. It also maintains the considerable strength required for windy conditions.

  • Available in several standard sizes
  • Can be manufactured to meet your required specifications
  • Galvanized or painted in your color of choice
  • Ordered individually or by the truckload and shipped to the site
  • Octagonal tapered light poles with straight or davit top sections
  • Square and round poles with optional brackets
  • Octagonal tapered traffic davits and median poles
  • Wood pole light brackets
  • Transformer and breakaway bases
