Agriculture Products
Serving farmers with superior grain & silage bodies, bin cranes, trailers & Coil Tech products.
From Our Factory to Your Farm
We’ve been supporting producers with superior farm products and helpful customer service for almost 40 years. Whether you require a truck body, bin crane, trailer, or Coil Tech harrow tines or stone picker bat springs, we have the solution to ensure your operation continues to thrive.

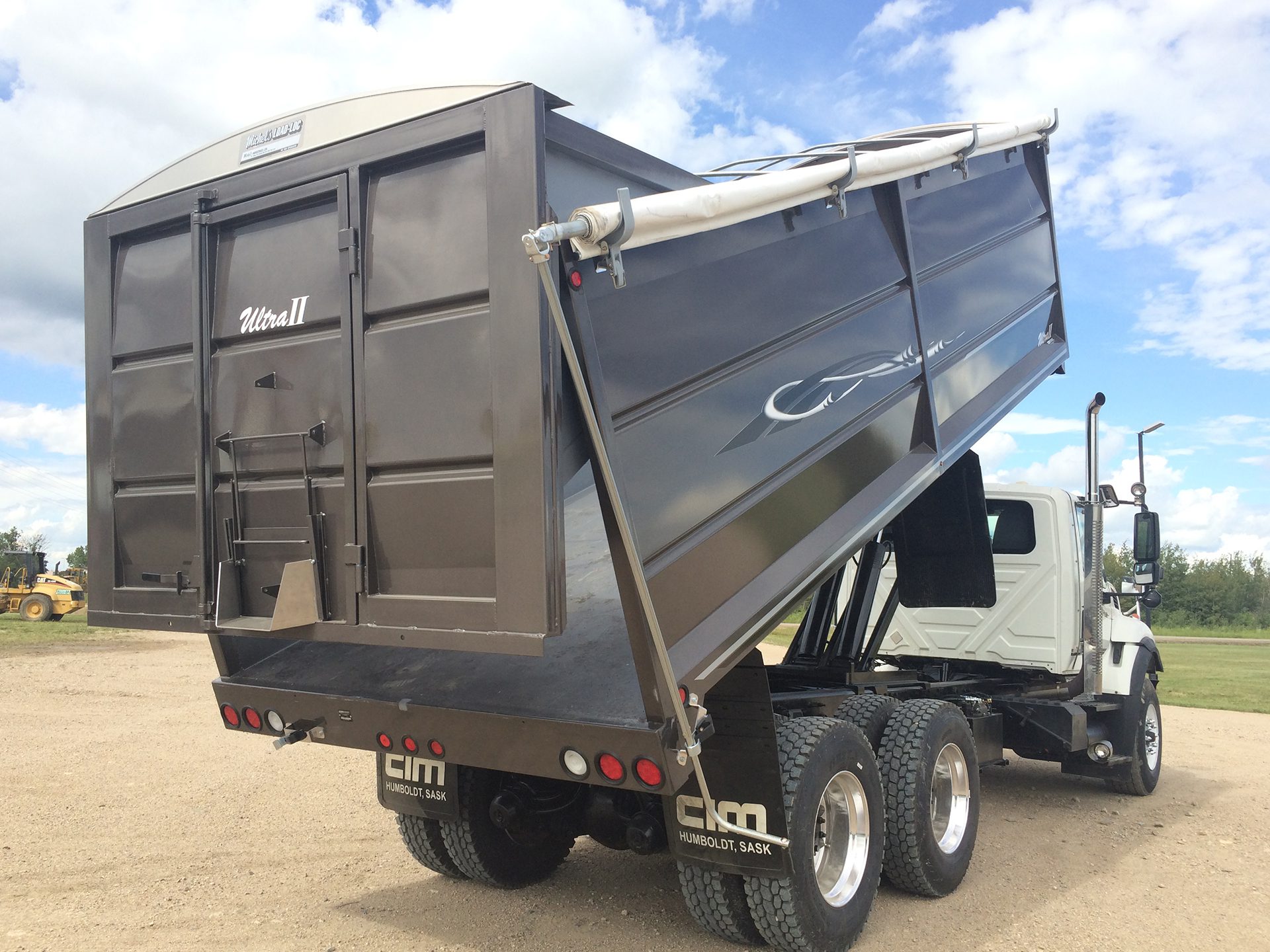

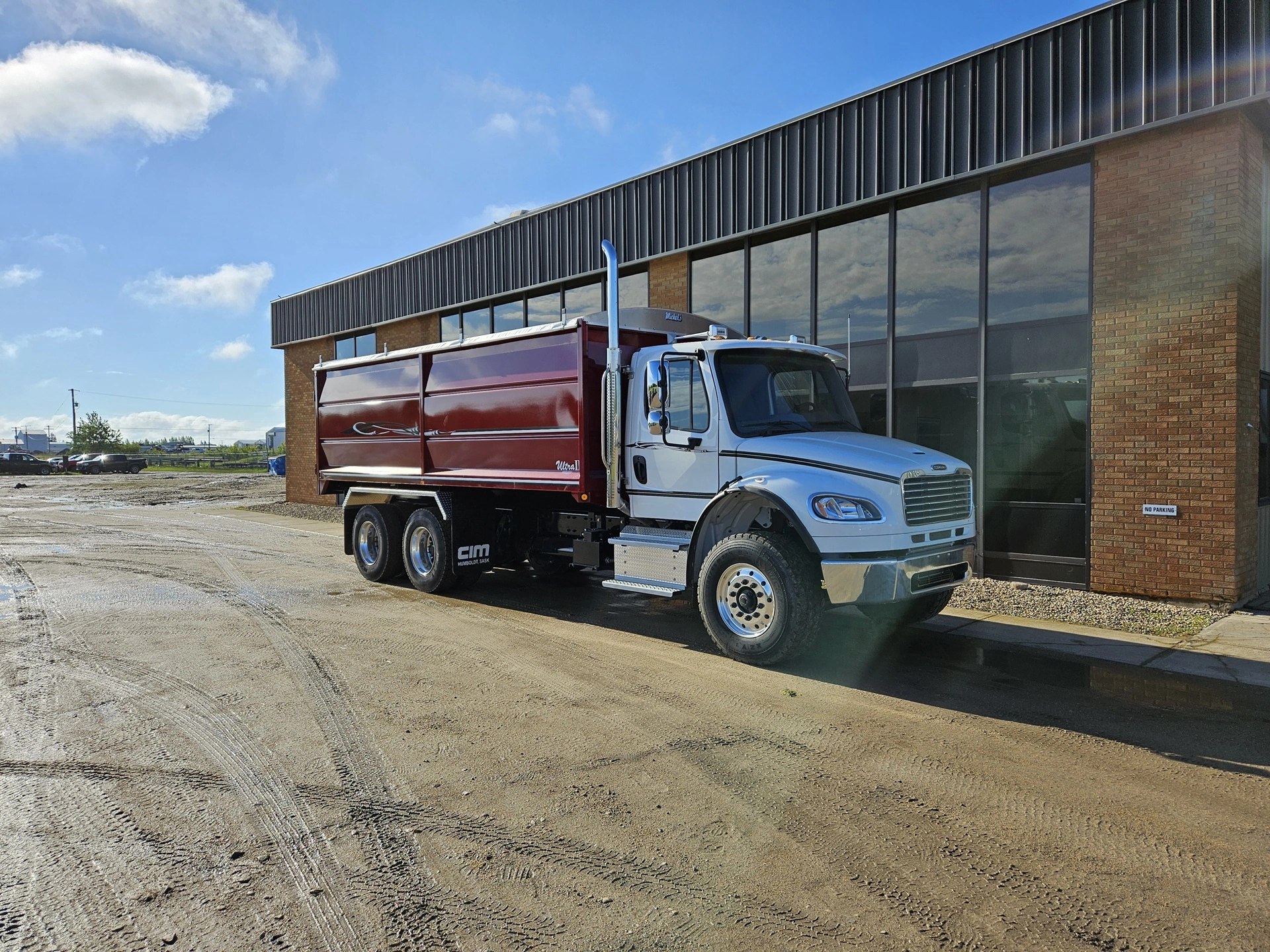

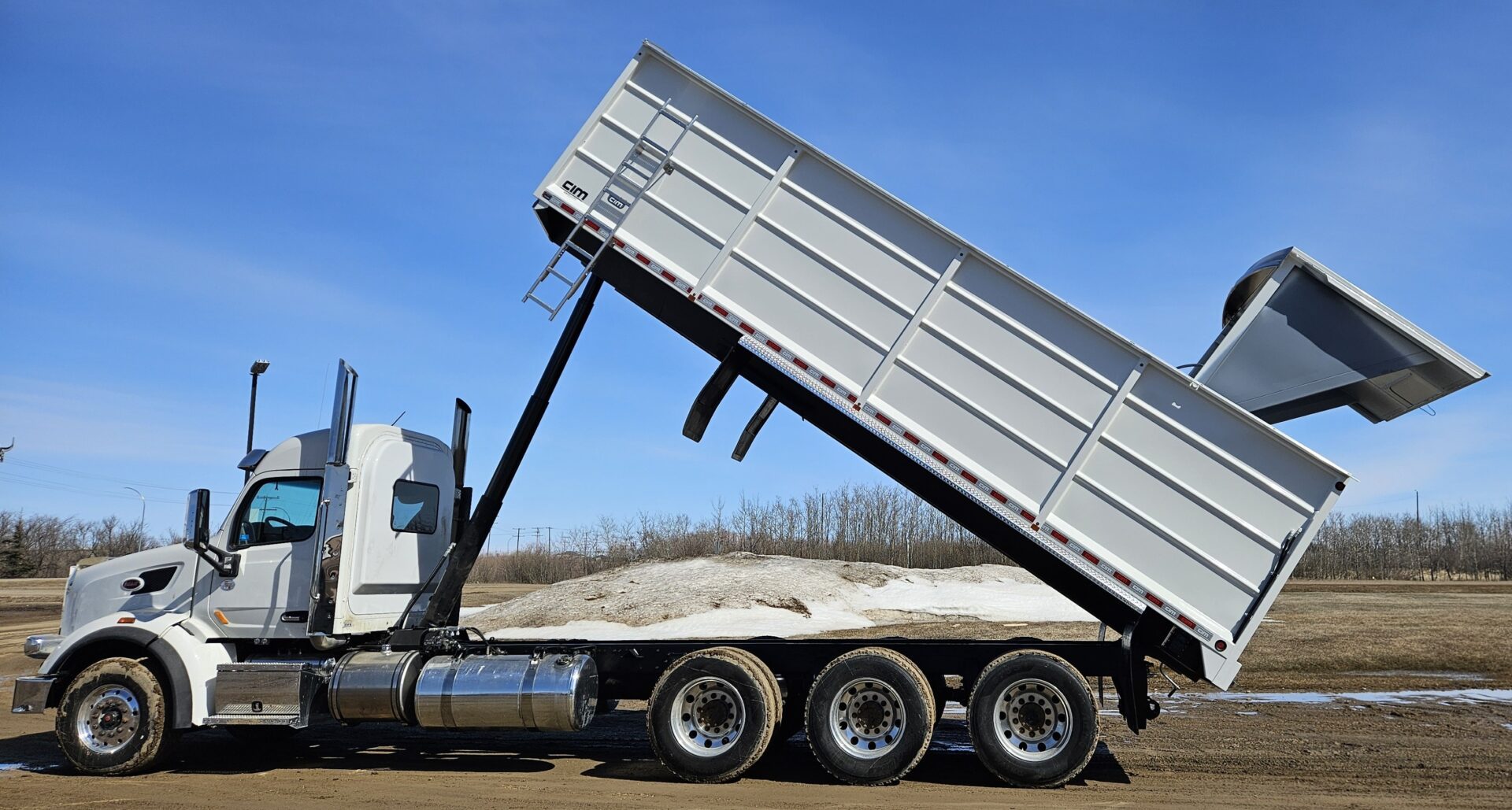

Ultra II Grain Body
- Smooth, clean floor design
- No cross members
- 42″, 48″, 55″, 60″, 65″ wall heights
- 3/16″ or 1/4″ floor with continuously welded floor seams
- 10″ x 3/16″ hatsills for superior floor support
- Heavy-duty front apron for added strength and rigidity
- 12 gauge side panels for superior strength and finish
- 3″ x 3″ tubular top rails, corner posts and centre post provide maximum strength for heavy payloads
- Easy clean out
- Eliminates grain traps
- Uniquely formed lower sidewall rails for added strength
- 3/16″ structural rear light bar providing extra support for better fitting endgates
- LED lighting with enclosed wiring with heat shrink connections
- Aluminum exterior body ladder with inside box rungs
- 3 or 4 piece swing out endgates with removable header bar for full-width access
- No tools required
- Endgate framework designed to keep grain in and moisture out
- Fast discharge grain chute to feed large augers with dual runner slide to accommodate optional grain deflector or Flex-A-Hopper spout
- Hydraulic or mechanical lift silage gate
- Silage taper packages
- Roll tarps
- Box window
- Remote end gate and hoist system
- Air operated hoist controls
- Flex-A-Hopper chute extensions
Ultra Cel Grain Body
Our CIM Ultra Cel Grain Body is a combination of our best-proven designs. The cross-member floor provides the best in strength and durability while minimizing overall box weight and providing a better strength-per-weight ratio than smooth-bottom grain bodies. Uniweld construction of sloped ribs and continuously welded internal seams eliminates rust and prevents moisture from seeping between the sides and the floor.
- 42″, 48″, 55″, 60″, 65″ wall heights
- 11 gauge steel floor on 2″ x 4″ steel cross members; 12″ on center
- 2″ x 8″ tubular steel long beams
- 12 gauge side panels for superior strength and finish
- 3″ x 3″ tubular top rails, corner posts, and center post provide maximum strength for heavy payloads
- Easy clean out
- Eliminating grain traps
- D.O.T. approved clearance lights with enclosed wiring with heat shrink connections
- Aluminum exterior body ladder with inside box rungs
- 3 or 4 pieces swing out endgates with removable header bar for full-width access
- No tools required
- Endgate framework designed to keep grain in and moisture out
- Fast discharge grain chute to feed large augers with dual runner slide to accommodate optional grain deflector or Flex-A-Hopper spout
- Hydraulic or mechanical lift silage gate
- Silage taper packages
- Roll tarps
- Box window
- Remote end gate and hoist system
- Air operated hoist controls
- Flex-A-Hopper chute extensions

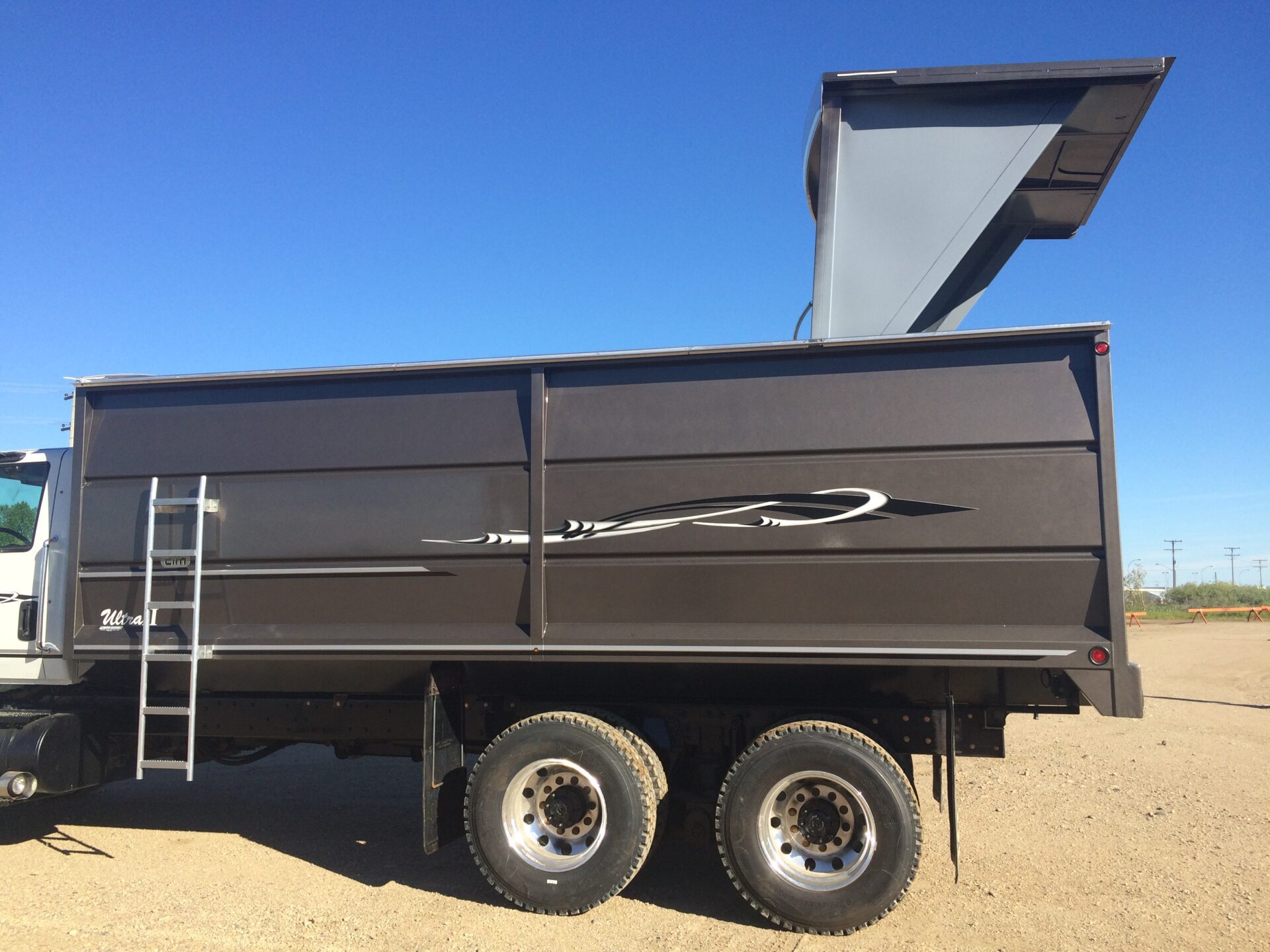

Silage Body
Standard Specifications for Commercial Silage Body:
- 11 gauge steel floor
- 12 gauge steel sidewalls with bottom 6″ sloped
- 2″ x 4″ tubular cross members 12″ o/c
- 3″ x 3″ tubular wall frame uprights 5’ o/c
- 42″-72″ box wall height available options
- Extensions, custom built to order
- Silage taper packages
- Roll tarps
- Box window
- Remote end gate and hoist system
- Air operated hoist controls
- Flex-A-Hopper chute extensions
Standard Specifications for CIM Silage Body:
- Offers your choice of a conventional floor or our new smooth bottom floor
- Uniweld construction
- 12 gauge steel sidewalls
- 3″ x 3″ tubular sidewall frame
- 4″ taper package
- 42″ x 72″ box wall height
- Hydraulic combination grain/silage hydraulic combination grain/silage gate
- Inner arm
- Dual 2″ x 30″ hydraulic lift cylinders
- Swingout center grain gate with chute
- Strong, durable design
- Fully operational without removing tarp
- Challenger scissor hoists available in 10–32 ton
- Will provide years of safe and durable use
- Extensions, custom built to order
- Silage taper packages
- Roll tarps
- Box window
- Remote end gate and hoist system
- Air operated hoist controls
- Flex-A-Hopper chute extensions

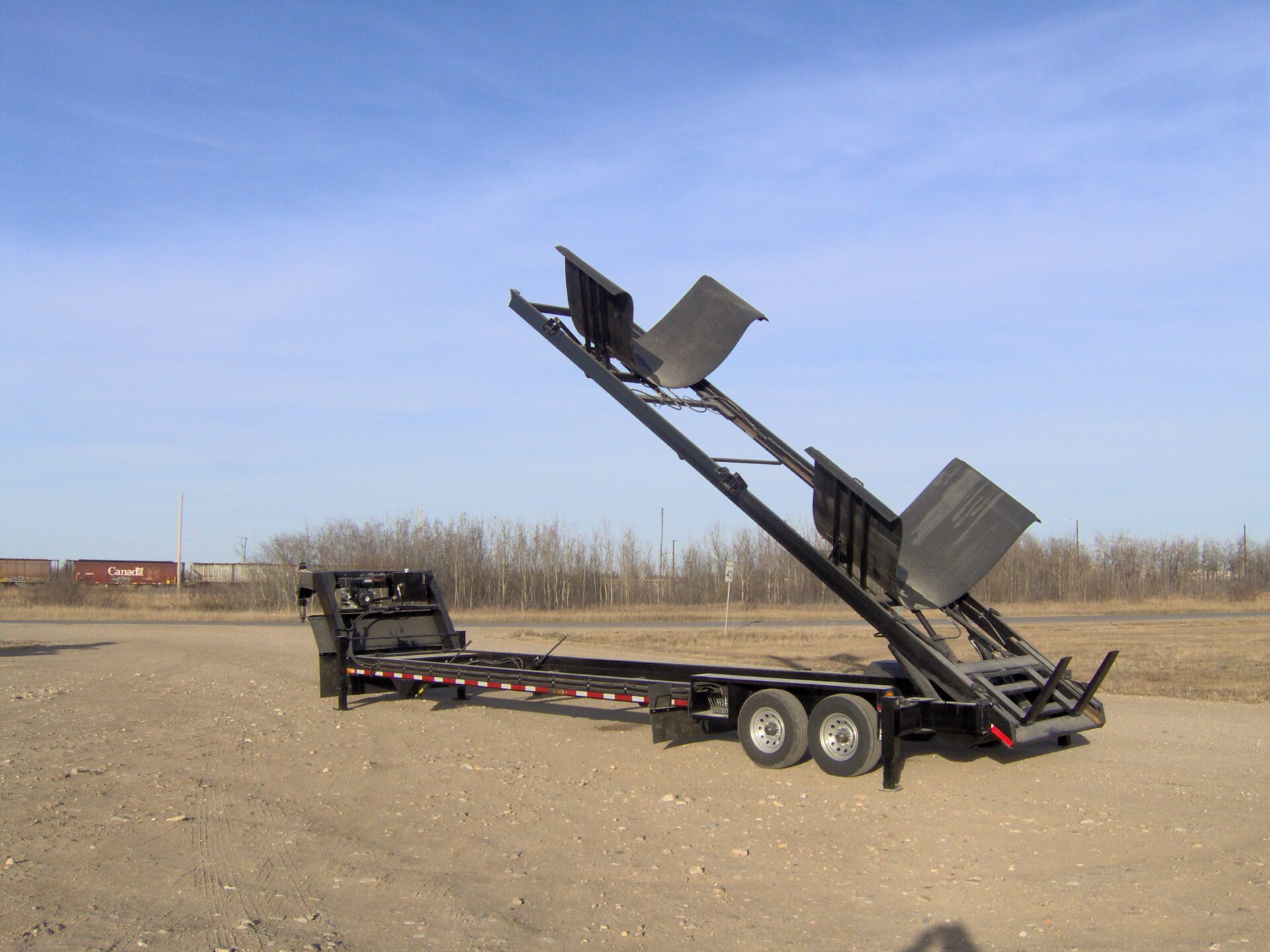

Auto Bin Transport
Our bin transport trailers are available in gooseneck or pony style configuration and are designed with a low bed height structural frame to accommodate a wide range of bin configurations.
- 17500 GVW with a 32-foot bed to accommodate up to 21-foot diameter bins
- Torfex axles with electric brakes and oil bath hubs
- Rear cradle with 48” belting inlay, a foldable cradle for transport
- Hyd. forward cradle with 48” belting inlay, a foldable cradle for transport
- Rear hydraulic stabilizer legs
- Full belting rock skirt at the front and ahead of suspension
- 5-way directional control valve at driver’s side rear for ease of operation
- 15 hp Honda power pack, 2 stages with electric start
- Two, 4” round LED strobes at the rear of unit
- Primed and painted black, comes with conspicuity tape.
- LED lighting package
- Hydraulic wet kit installation
- Proportional remote, electric over hydraulic

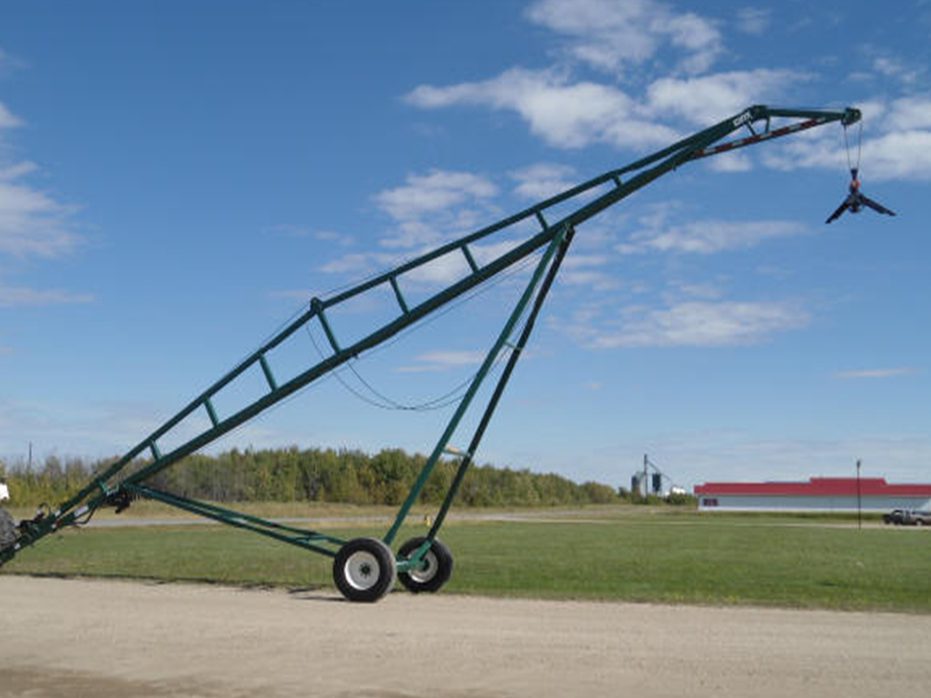

Bin Cranes
- Lifting capacity 8000 lb/3600 kg capacity
- Transport dimensions: 10’ OAW x 13’ 6” OAH x 59’ OAL
- Max usable hook height: 41’ 6” (44’ 7” approx. overall height)
- Dual HU8A hydraulic winch design for easy setup & operation
- Manual adjustable axle width
- 2” ball coupler transport hitch included
- Unit comes complete with owner and user manual
- Bin crane setting selection & limitations chart included in owner’s manual.
- Parts list included in owner’s manual
- Full decal package (safety & operators decals)
- Full line of replacement parts including structural comments available
- Transport lighting kit available on request
- In stock for quick delivery
- Rough dimensions
- Transport: 13’ 6” x 59’
- Max height: 44’ 7”
- Usable height: 41’ 6” to snatch block hook

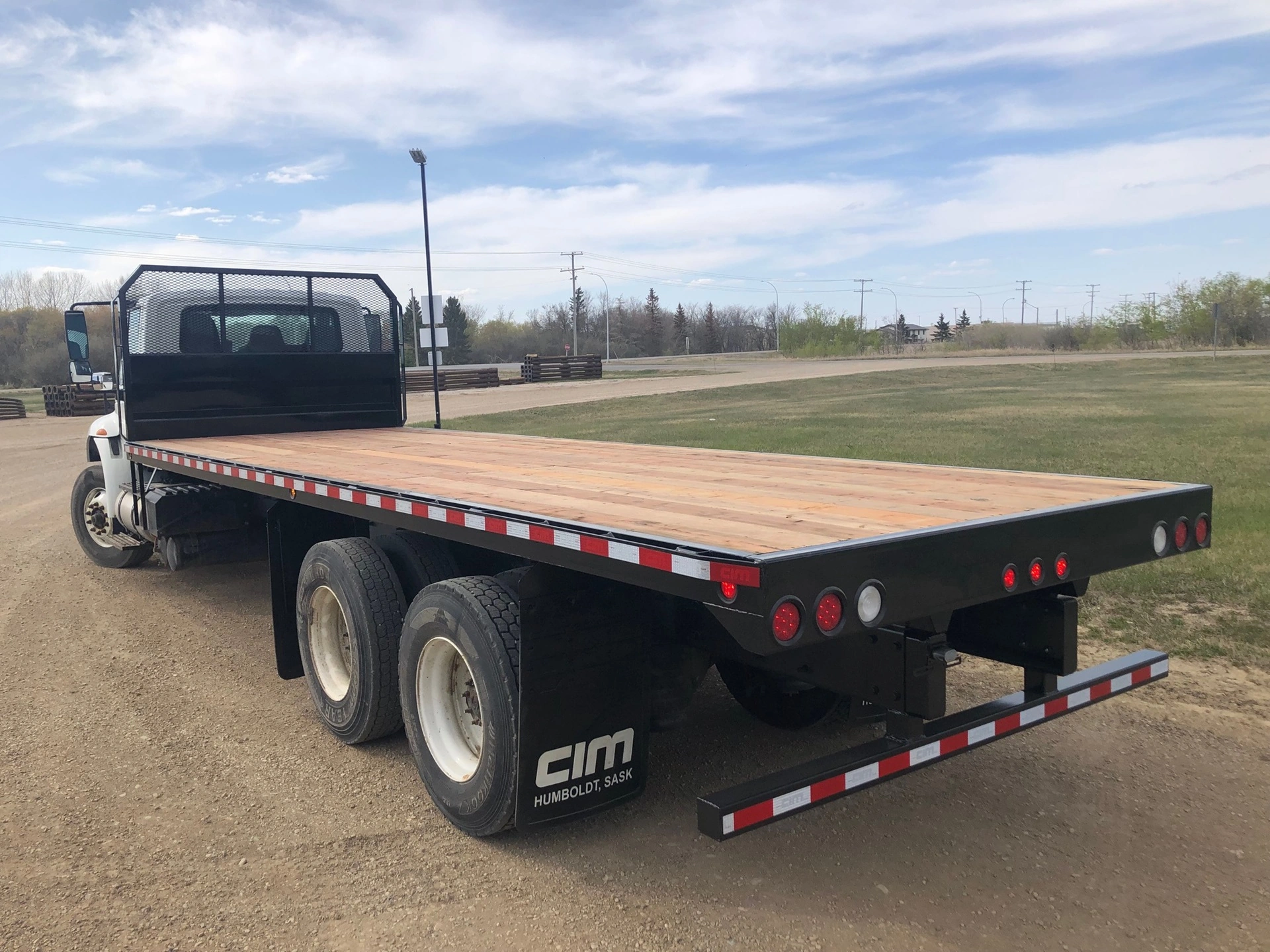

Flat Deck Trailer
Standard specifications for H.D. Commercial Decks:
- Cross members 12″ o/c
- Channel iron side rails
- Heavy-duty bump rail
- Pressure-treated wood or steel floor
- 1/8″ & 3/16″ smooth or checker plate
- Stake pockets and rub rail
- 1/2 steel and 1/2 mesh cab protectors
- Recessed rubber-mounted lighting
- Fully enclosed wiring with heat shrink connections
- Conspicuity tape

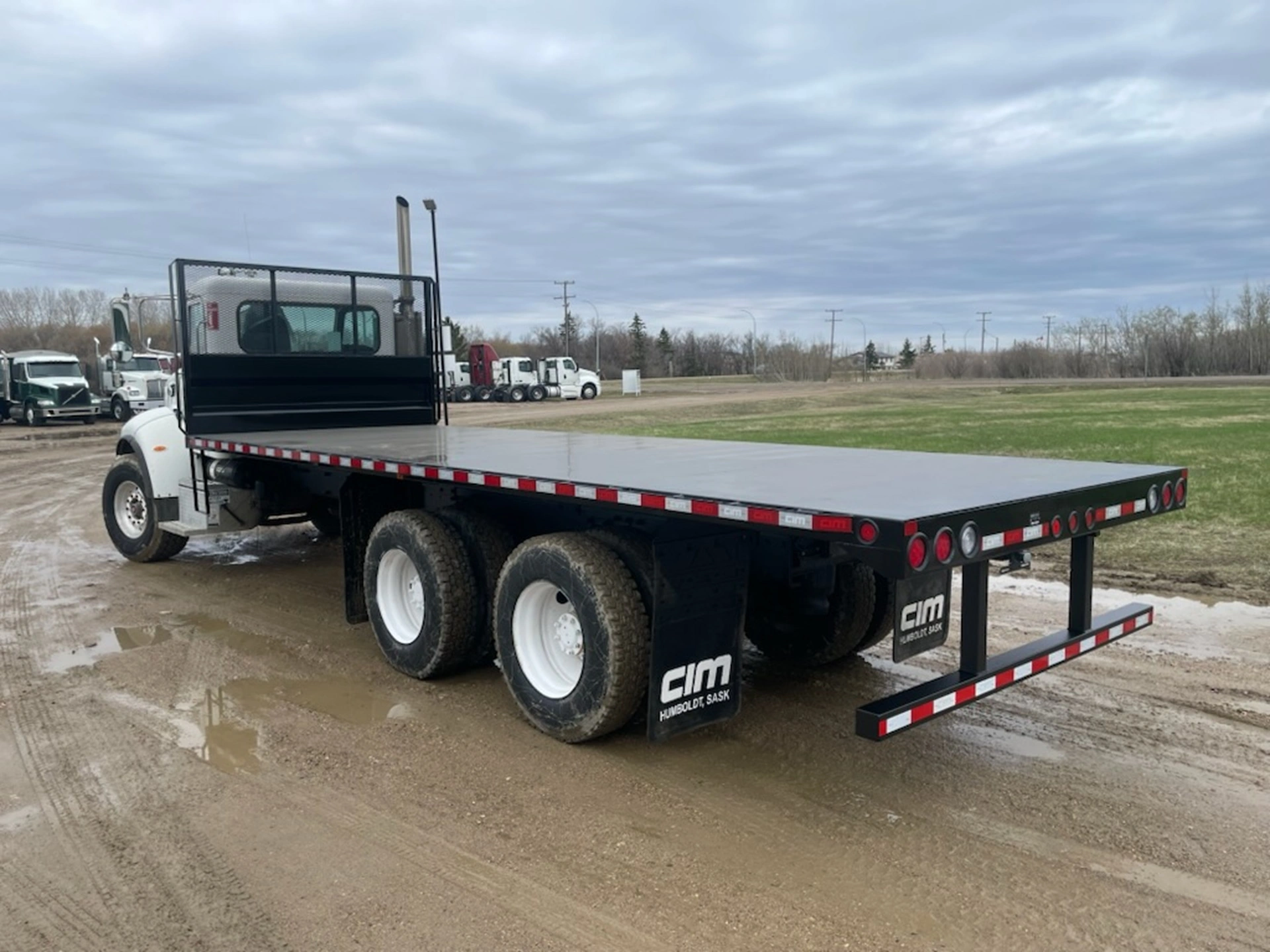

Standard specifications for Ag Decks:
- 10 gauge steel wrap floor, smooth or checker plate
- Cross members 12″ o/c
- Clearance light package
- Industrial paint and primer
- Trailers
- Bumper, pintle or gooseneck
- Electric, hydraulic or air brakes
- Torflex, spring air-ride suspension
- Flat decks, dovetails
- Custom built to order
- Winch track
- Beacons
- Toolboxes
- Hoist & hydraulic pump combinations
- Wide load slideouts

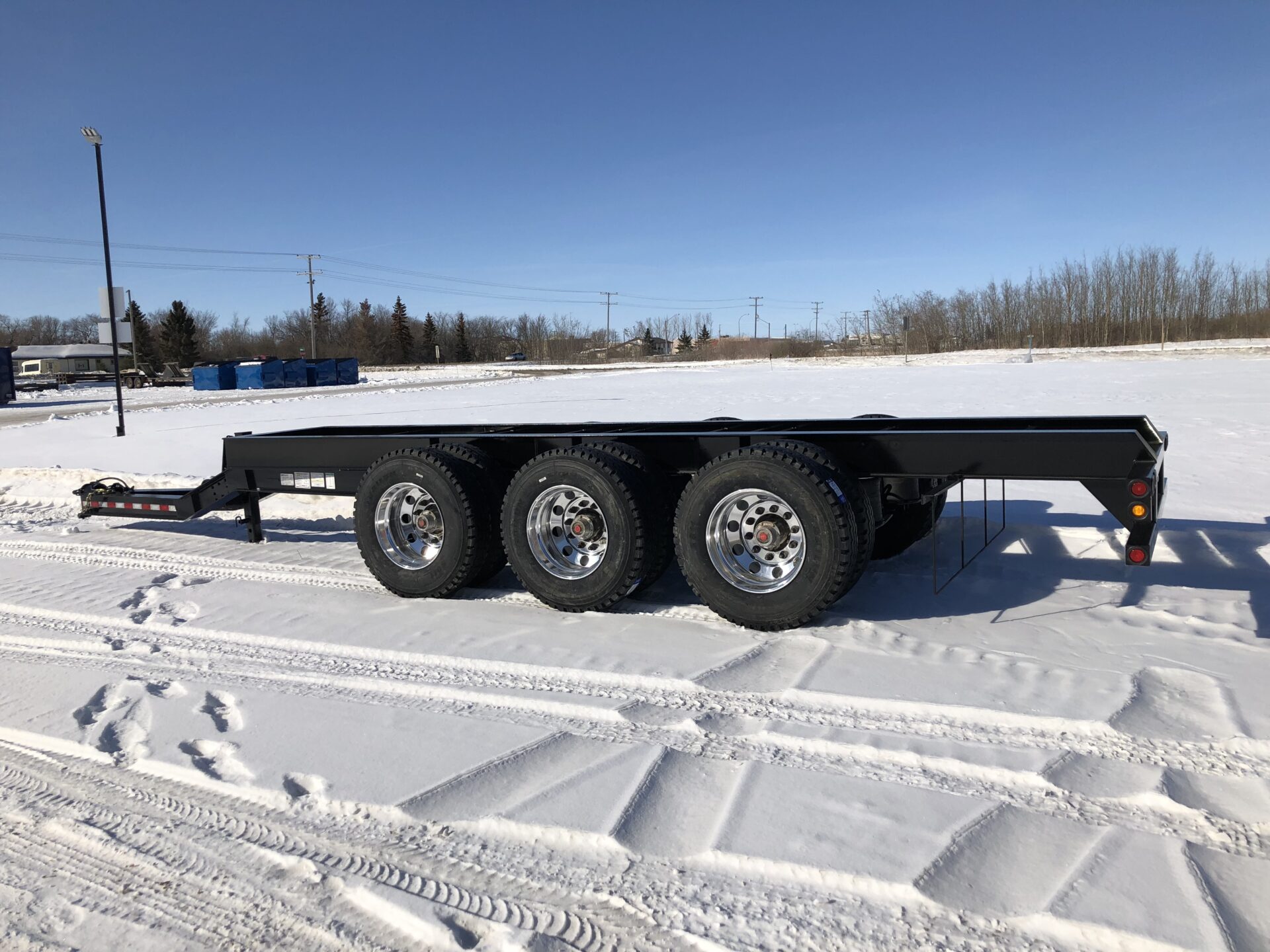

Pup Trailer
Whether you’re considering a tandem or tri-axle trailer with a spring or air-ride suspension, we’ll design and build a trailer to fit your specifications. Offering a variety of full I-beam frames, suspensions, and axles with anti-lock brakes, combined with quality workmanship and a CIM grain body, gravel body, or flat deck, we’re confident we have a CIM trailer to haul your product effectively.

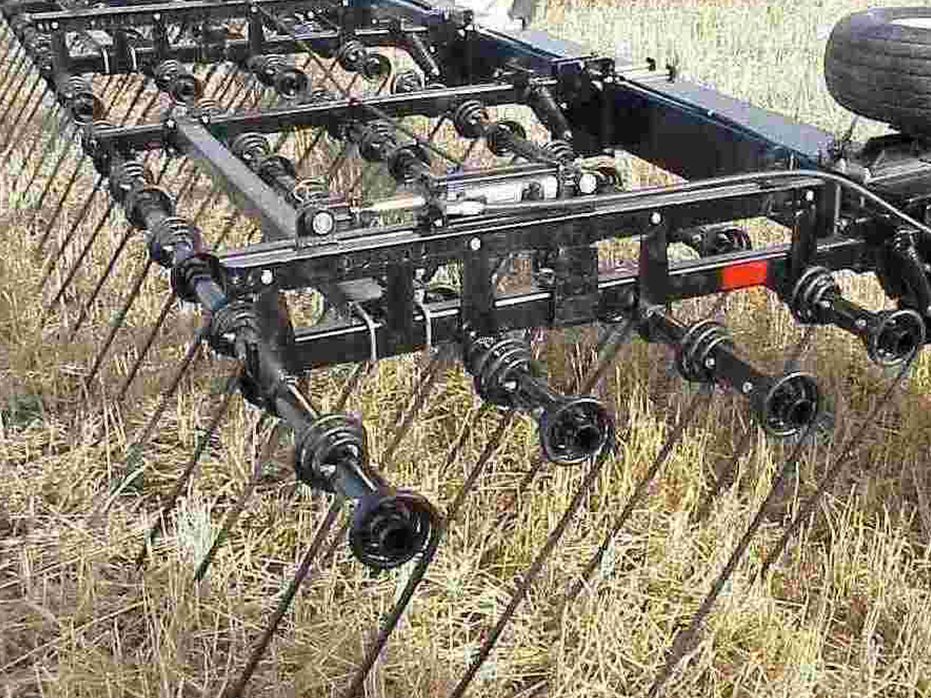

Coil Tech (a division of CIM)
- Harrow tines
- Stone picker bat springs
- Hose holders
- Garbage bin lids springs
- Machine shop services
- Hydraulic cylinder repair
- Heavy truck drive line repair
